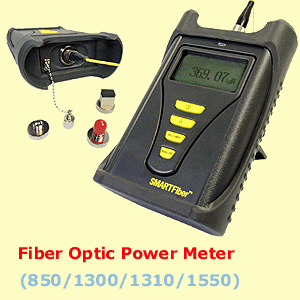

SMARTFiber with four wavelengths Power Meter


Standard SMARTFiber with four wavelengths is an easy to use and lightweight fiber optic power meter that measures the power of light transmitting from an optical fiber.

The SMARTFiber includes interchangeable adaptor to connect FC, ST and SC type fiber connectors. It utilizes an InGaAs detector to improved sensitivity and temperature stability to test for standard optical power from +3 to -60dBm dynamic range. It can test both single-mode and multi-mode fiber cables, with the optional adaptor, users can test 2.5mm and 1.25mm fiber cables. For identification purposes, the SMARTFiber can also receive modulate signals(270Hz, 1KHz, 2KHz) simultaneously.

For fast and easy operation in testing the corresponding wavelengths, we recommend the Hobbes OPTISource as a complete set in auto-identifying wavelength of optical power source.

Features
Simple to use and portable
Calibrated at 850nm, 1300nm, 1310nm, 1550nm
Accuracy: 0.15dB1nW@1300nm/1310nm/1550nm; 0.25dB1nW@850nm
Optical power range from +3 to –60dBm
Measurement units in dBm and Watt
Ideal for both multi–mode and single–mode optical fibers
Optional adapter to test both 2.5mm/1.25mm fiber cables
Can receive modulate signal (270Hz, 1kHz, 2kHz) simultaneously for identification
Battery indicator and power auto off function
Automatic wavelength detection (when used with Hobbes OPTISource as  optical light source)

Specification
Wavelength: 850nm, 1300nm, 1310nm, 1550nm
Sensor type: InGaAs
Dynamic range: +3 to –60dBm
Accuracy: 0.15dB1nW@1300nm /1310nm /1550nm; 0.25dB1nW@850nm
Resolution: 0.01dBm
Unit: dBm, Watt
Fiber connector: Interchangeable adaptor for FC, ST and SC
2.5mm to 1.25mm adapter spec.: Insertion Loss: =0.3dB Pull strength test: 100~300g, 2.5mm and 1.25mm universal
Operating temp.: -10C to 50C
Storage temp.: -40C to 70C
Battery: AAA battery x 4(6V)
Dimensions: Around 131x86x40 mm
Weight: 230g

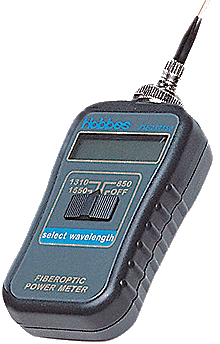

Fiber Optic Power Meter

Part Number T3040

$285.30

Order online

Click here to order online

Call Toll Free 1-888 608-5180
