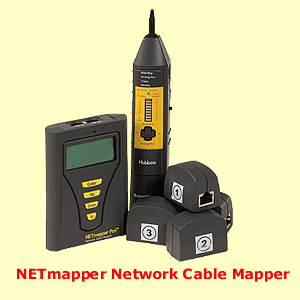

NETmapper-Pro Hand–held multifunctional network–testing

NETmapper Pro is a hand–held multifunctional network–testing device that integrates all On–Line/Off–Line and telephone line test functions in one tester. For On–Line testing, it operates as a workstation; ping network devices and illustrates the machine name/IP address/MAC address and identifies all the network devices including Router, Printer and PC Host..etc. For Off–Line testing, it operates as a professional cable checker.

Furthermore, the NETmapper Pro has integrated Digital Tone Generator and portfinder functions to trace and identify cables with precision. The NETmapper Pro works as an all in one full functional tester and a very useful tool for all professional network administrators to quickly verify network connectivity and obtain essential information from the entire networks for troubleshooting and maintenance. NETmapper Pro can also work with Hobbes SMARTprobe digital probe to be a complete tone and probe cable tracing set.

Specification
• Displays the Ethernet port status: Identifies Speed up to Giga (10/100/1000)
• Ping default router, DNS Server and user defined device
• Scans and lists all the PC Host with IP address and computer host name or MAC address
• PC Host service detects: HTTP/Telnet/DHCP/FTP and SNMP services
• Incorporates port-finder function: locate corresponding socket on 10/100M or Giga hub/switch
• Wire map results are displayed in a pin–to–pin format

• Remote ID number indication for recognition on   workstations
• RJ-45 ports on main unit for either On–Line or Off–Line Test
• Measures cable length without remote of Cat5, Cat5e, Cat6 and Cat7 cables
• Self–calibrating ability for non–standard cable tester (length test) and/or to increase measuring accuracy
• User define unit of measurement in meter or feet for cable length tests
• The Tone Generator function sends 1KHz tone on all pins with 4 special tonalities (The Digital Generator function sends single tone and dual tone)
• Automatically detects POE devices and voltage
Display: LCD
Connector type: RJ-45
Accuracy: ±2m less than 10m (±6.56 ft. in less than 32.81 ft.), ±5% over 10m (32.81ft.)
Test range for cable length: 1 to 300m (3 to 984 ft.)
Split pairs detection: minimum 1.5m (4.5 ft.)
Tone generator: Single/dual digital tone
Operating temp. : 0ºC to 50ºC (–32ºF to 122ºF)
Storage temp. : -30? to 50? (-22? to 122?)
Humidity: 10% to 90%
Master Dimensions: 110 x 78 x 31mm
Remote Dimensions: 44 x 32 x 28.5mm
Weight: 145g
Battery: 4 x AAA battery


NETmapper Pro

Order online

Click here to order online

Part Number T3037

$356.20
