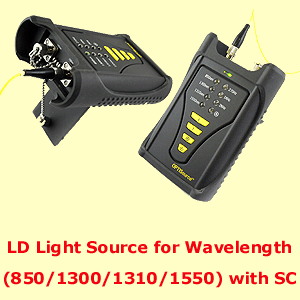

Fiber Optic Light Source for SC

The OPTISource is a high performance stabilized source that is widely used in fiber network installation and maintenance. New version of OPTISource can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode. With an optional built in fiber connectors (FC, SC, ST) and Hobbes’ power meters (SMARTFiber and SMARTFiber Pro), this choice brings you an economic and efficient solution for the fiber optic network tasks.
Features
• There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
• CW and 270Hz, 1kHz, 2kHz modulated signals
• Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use   as a complete set)
• LED indicators
• Auto power off for power saving

Specification
Wavelength: 850nm, 1300nm, 1310nm, 1550nm
Spectral width: =5nm
Output power: =–13dBm@850/1300nm; =–5dBm@1310/1550nm
Stability: ±0.15dB/8hr@1310/1550nm; ±0.25dB/8hr@ 850nm/1300nm
Connector type: Optional built in fiber connectors (FC or SC or ST assignable)
Auto power off: 30 min. without key pressed
Frequency: 270Hz, 1kHz, 2kHz
Battery: 4 x AAA
Dimensions: 125 x 78 x 31mm
Weight: 145g

Fiber Optic Light Source for SC

Part Number T3039SC

$375.30

Order online

Click here to order online
